Project Portfolio: Galvanised Steel Railings, Access Gate and Staircase, Barnsley, South Yorkshire
Project Overview
Client: Harriette
Location: Barnsley, South Yorkshire
Scope: Supply and installation of galvanised and powder coated steel railings to perimeter terracing, matching access gates hung from core drilled steel posts, and a bespoke steel staircase with balustrade railings providing garden access to the upper balcony level
Fixing Method: Core drilled and grouted post bases with cover plates throughout
Finish: Galvanised and powder coated black
Setting: Substantial residential renovation of a stone built property, Barnsley
Related Project: Bespoke Glass Balustrade and Balcony Installation, Sheffield — earlier phase of works for the same client
The Project: Phase Two of a Major Residential Renovation
This project forms part of an ongoing relationship with Harriette, whose substantial stone built property in Barnsley has been undergoing a significant programme of renovation work. Dio-Met had previously completed an extensive package of glazing and steelwork at the property including frameless glass balustrades, walk on glass floor panels and a frameless Juliet balcony — details of which can be found in our earlier project page.
This second phase focused on the external perimeter terracing, access gates and garden staircase — completing the safety and access requirements for the full site.
The Railings: Galvanised and Powder Coated Steel

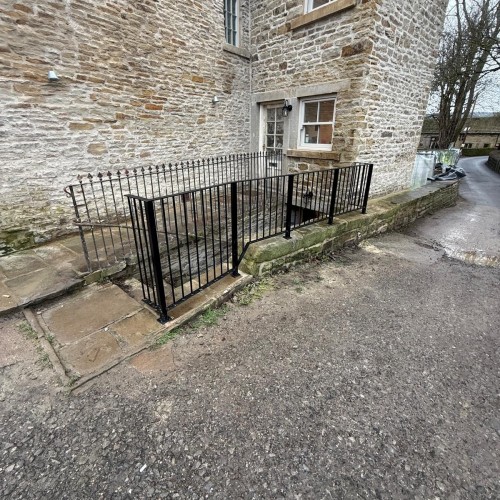

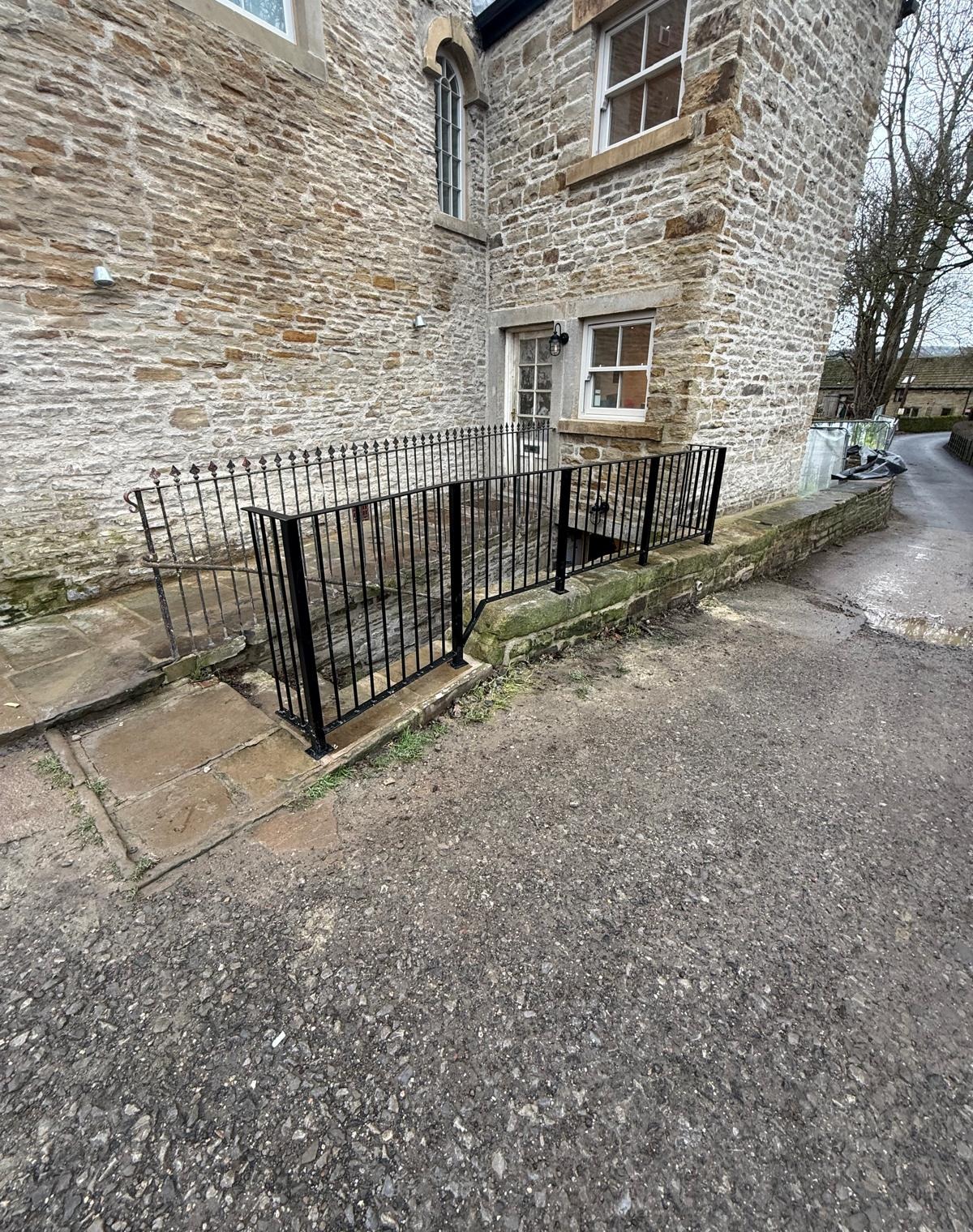

The perimeter railings were fabricated from mild steel with a vertical bar infill, galvanised and powder coated black to provide long term weather resistance appropriate for an exposed external installation on a Yorkshire stone building.
Galvanising prior to powder coating is the correct specification for external steel railings that need to perform for decades without maintenance. The zinc galvanising layer provides sacrificial corrosion protection to the steel substrate, and the powder coat finish over the top provides the aesthetic finish and an additional barrier layer. This two stage process is significantly more durable than powder coat alone and is the specification Dio-Met recommends for all external mild steel work in exposed positions.

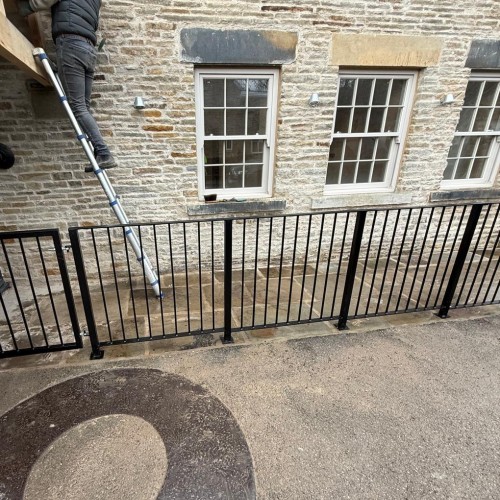

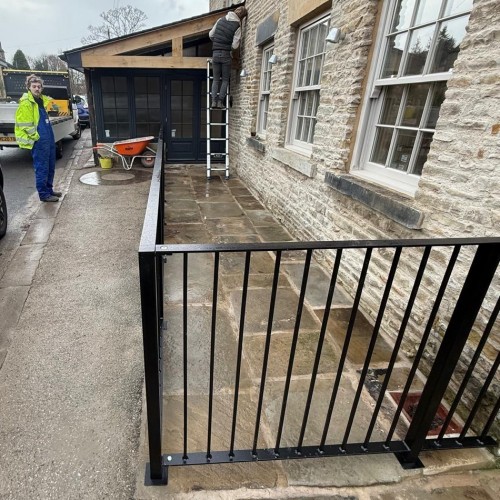

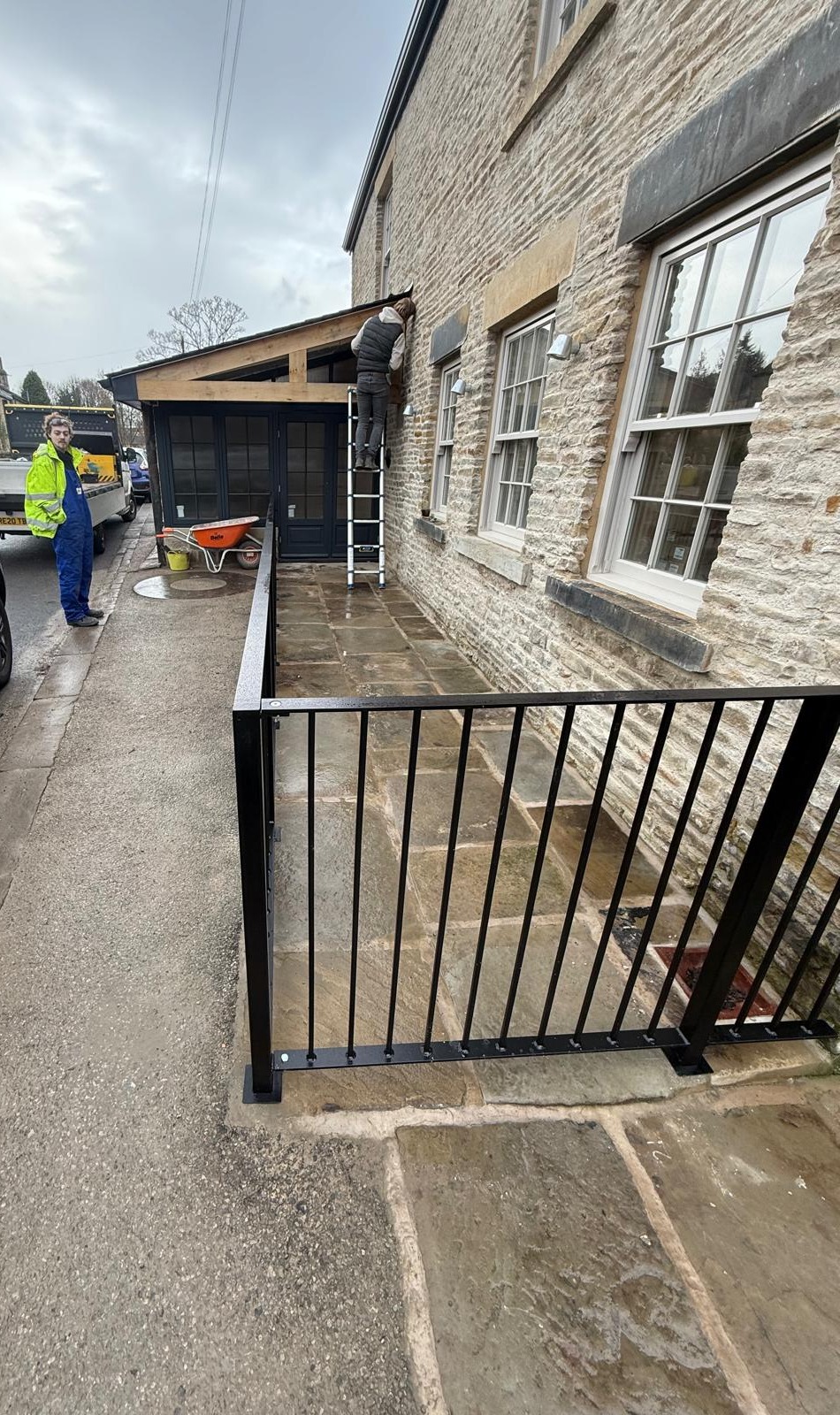

The railings run along the full length of the terrace perimeter, stepping down to follow the natural change in level across the stone flagged courtyard area. Post bases were core drilled into the stone flags and set in grout, with a cover plate fitted over each base to conceal the fixing detail and provide a clean finish at ground level.
Core Drilling and Grouting: The Right Fix for Stone Flags
On a project like this, where steel post bases are being fixed to historic stone flags, the fixing method matters considerably. Hammered expanding anchors can crack or fracture old stone, particularly Yorkshire sandstone which can have unpredictable grain and fracture lines. The correct approach is core drilling — a slow, water cooled rotary drilling process that removes a clean cylinder of material without the impact stress that damages stone.
Once drilled, each hole is blown clean and the post is set directly into the core with a two part grout, which bonds chemically to both the stone and the steel. When cured the result is a monolithic fixing — the post becomes part of the stone rather than mechanically fastened to it. Cover plates are then fitted over each base to conceal the core and provide a neat, professional finish at ground level.
The Access Gates: Hung from Steel Posts, Not Stone Walls
The access gates present a good example of how fixing method can drive design decisions on historic buildings. The instinctive approach to hanging a gate on a stone building would be to fix hinges directly to the adjacent stonework — but on a rubble built property like this, the wall faces are rarely plumb, rarely square and rarely consistent enough to provide a reliable hanging point for a heavy steel gate.
The solution was to use the same core drilled post system as the perimeter railings. A dedicated steel post was set into the stone flags at each gate position, providing a perfectly plumb, structurally sound hanging point independent of the wall face entirely. The gate hinges were then welded to the post in the workshop, set out precisely for the gate geometry, before the whole assembly was installed on site.
This approach gives a consistently square, correctly hung gate regardless of whatever the adjacent stonework is doing — and means the gate operation will remain smooth and true for the life of the installation without any dependency on the condition or alignment of the historic masonry.
The Staircase: Garden Access to the Upper Balcony

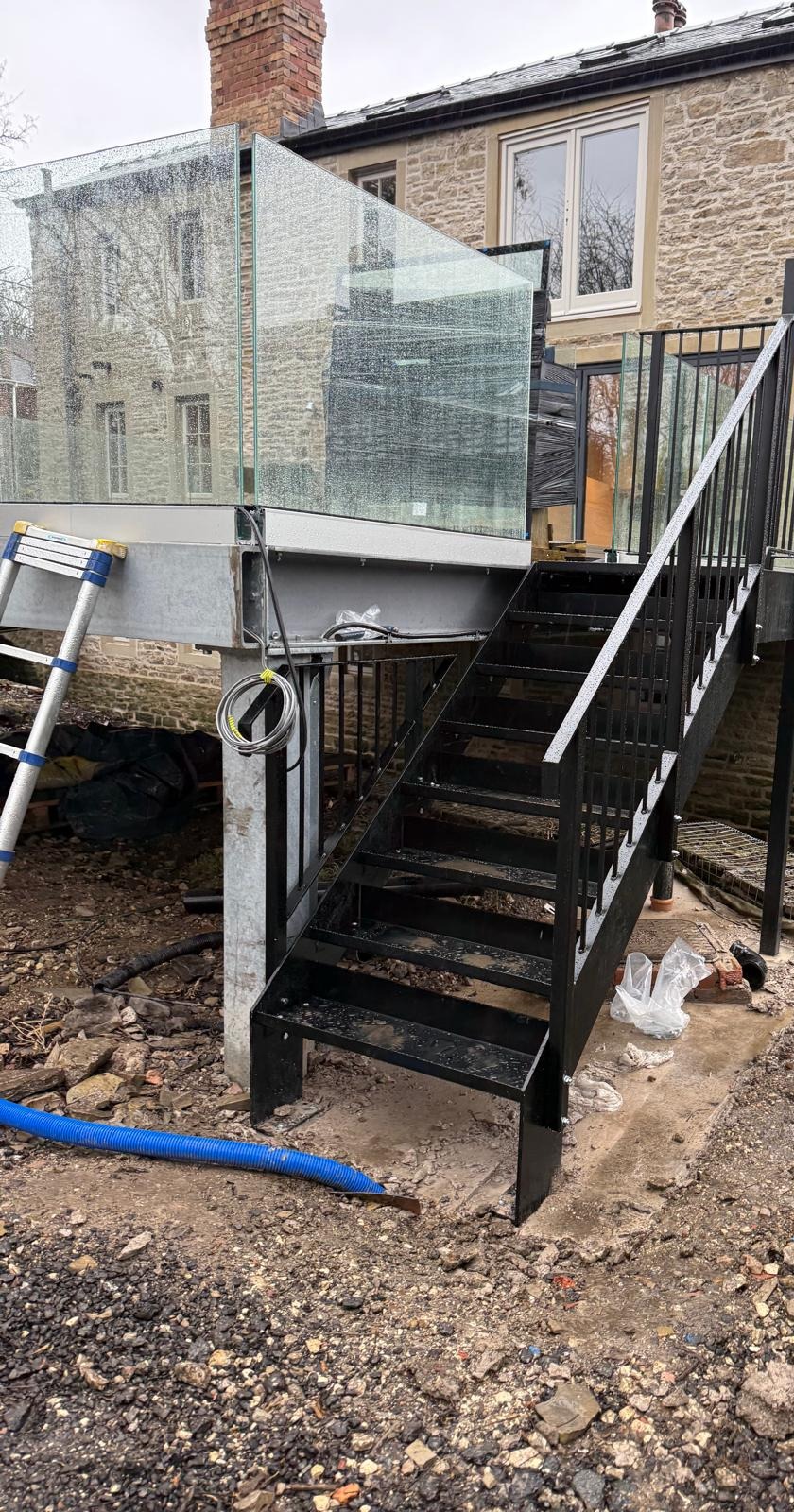

A bespoke steel staircase was fabricated and installed to provide direct access between the garden level and the upper balcony terrace. The staircase uses the same galvanised and powder coated black finish as the perimeter railings, maintaining visual consistency across the whole external steelwork package.
The balustrade to the open edges of the staircase uses a railing infill to match the perimeter fencing, with triangular infill panels fabricated to suit the raking geometry at the stringer line — a detail that requires careful geometric set out to ensure the vertical bars remain truly vertical even as the railing follows the pitch of the stair. Glass panels were incorporated at specific points on the staircase and landing areas, providing weather screening and maintaining the glazed aesthetic established in the first phase of works.
Technical Insight: Maintaining Consistency Across a Multi-Phase Project
One of the challenges on a project delivered in phases over an extended renovation programme is maintaining finish and specification consistency between elements installed at different times. On Harriette's project, the black powder coat finish specified in this second phase had to be matched precisely to the earlier steelwork already in place — this requires retaining the original RAL code and powder coat supplier details so the batch match is as close as possible. Even slight variations in sheen level or tone are visible when new and old steelwork sit adjacent to each other. Keeping detailed project records from phase one was what allowed us to achieve a consistent result across the full site.
Frequently Asked Questions
What is the best fixing method for steel railings on old stone buildings? Core drilling followed by grouting is the preferred method for historic or natural stone substrates. It avoids the impact stress of hammered fixings which can fracture old stone, and provides a strong, permanent monolithic fixing when correctly specified and cured. Cover plates are then used to conceal the core and provide a clean finish at ground level.
What finish is best for external steel railings? Galvanising followed by powder coating is the most durable finish for external mild steel. The galvanising provides sacrificial zinc protection to the steel, and the powder coat provides the aesthetic finish and an additional barrier layer. This combination significantly outlasts powder coat alone in exposed outdoor conditions.
Why hang gates from steel posts rather than directly from a stone wall? On historic rubble built stone properties, wall faces are rarely plumb or consistent enough to provide a reliable hanging point for a heavy steel gate. Using core drilled steel posts set independently into the ground gives a perfectly plumb, structurally sound hanging point regardless of the condition or alignment of the adjacent masonry. It also means gate operation remains smooth and true for the life of the installation.
Can you match an existing powder coat finish on later phases of a project? Yes, provided the original RAL code and finish specification are known. We retain project records for this purpose. Minor batch variation is possible but in practice the match is very close, particularly once the installation has weathered slightly.
Do you install railings and gates nationwide? Yes. Dio-Met fabricates all steelwork in our Sheffield workshop and installs nationwide. Contact us to discuss your project.
Explore More From Dio-Met
- Bespoke Glass Balustrade and Balcony Installation, Sheffield - earlier phase of works for the same client
- Steel Staircases - bespoke steel staircases from our Sheffield workshop
- Railings and Gates - full range of steel railings and gate products
- Ball Top Railings - decorative railing options
- Galvanised and Powdercoated Handrail - matching handrail systems
- Glass Balustrade Steel Staircase Installations Sheffield - similar combined staircase and balustrade project
- Core Drilled Glass Balustrade System, Dronfield - further core drill fixing project
Planning a Similar Project?
Whether you need perimeter railings, access gates, a garden staircase or a complete external steelwork package, Dio-Met can help. All steelwork is fabricated in our Sheffield workshop and installed nationwide.
