Project Portfolio: Parapet Cavity Wall Glass Balustrade, Oxford, Oxfordshire

Project Overview

Location: Oxford, Oxfordshire

Product: Parapet Cavity Wall Glass Balustrade

Finish: RAL 7016 Anthracite Grey Powdercoated Steel with 10mm Toughened Clear Glass

Scope: Design, manufacture and installation of a wraparound parapet cavity wall glass balustrade system to a first floor flat roof terrace extension on a residential property in Oxford.

Compliance: BS6180 loading requirements for external domestic applications at 1100mm height

The Project: A First Floor Terrace in Oxford

This Oxfordshire project presented a challenge that comes up regularly on modern residential extensions. The client had created a substantial flat roof terrace on their first floor extension and needed a glass balustrade that would provide safety and unobstructed garden views, without compromising the waterproof flat roof membrane below.

Standard balustrade fixing methods require posts to be core drilled or surface fixed through the roof covering, which on a flat roof immediately risks water ingress and invalidates the roofing warranty. The answer was our parapet cavity wall balustrade system, which transfers all structural loads back through the parapet wall rather than through the roof surface.

Understanding the Parapet Wall Challenge

Parapet walls on residential extensions are typically constructed in a similar way. An outer single skin brick leaf, a cavity void, an inner blockwork leaf, and a coping stone or capping profile on top. This construction creates a specific problem for balustrade installation.

Simply fixing a balustrade to the coping stones provides nowhere near enough structural resistance to meet BS6180 loading requirements. The coping stones themselves are often bedded rather than structurally fixed, and even where they are secure, the load path back into the building is insufficient.

The correct solution, and the one Dio-Met uses, is to fix through the coping into the inner structural leaf of the wall using correctly sized steel sections and chemically anchored fixings, creating a load path that transfers the forces generated by someone leaning against the balustrade safely into the building structure.

Technical Insight: Why Load Path Matters on Parapet Installations

On a flat roof terrace, the balustrade is the only thing between a person and a first floor drop. BS6180 requires external domestic balustrades to resist a lateral load of 0.74kN per metre at the top rail. On a parapet cavity wall system, every element of the design has to work together to transfer that load safely through the wall and into the structure. The steel section sizes we use, the fixing centres, the bolt specifications and the glass thickness are all calculated to achieve this. We do not offer a one-size-fits-all approach on cavity wall installations. Every project is measured on site and the fixing arrangement is designed around what the wall can structurally accept. This is why a survey is always the starting point for this type of project rather than an online price calculator.

The Specification: Anthracite Grey and Clear Glass

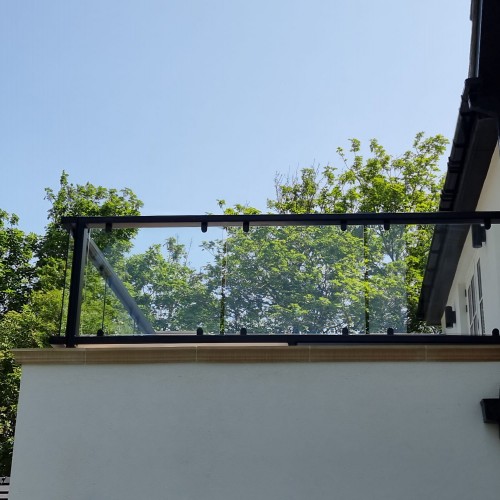

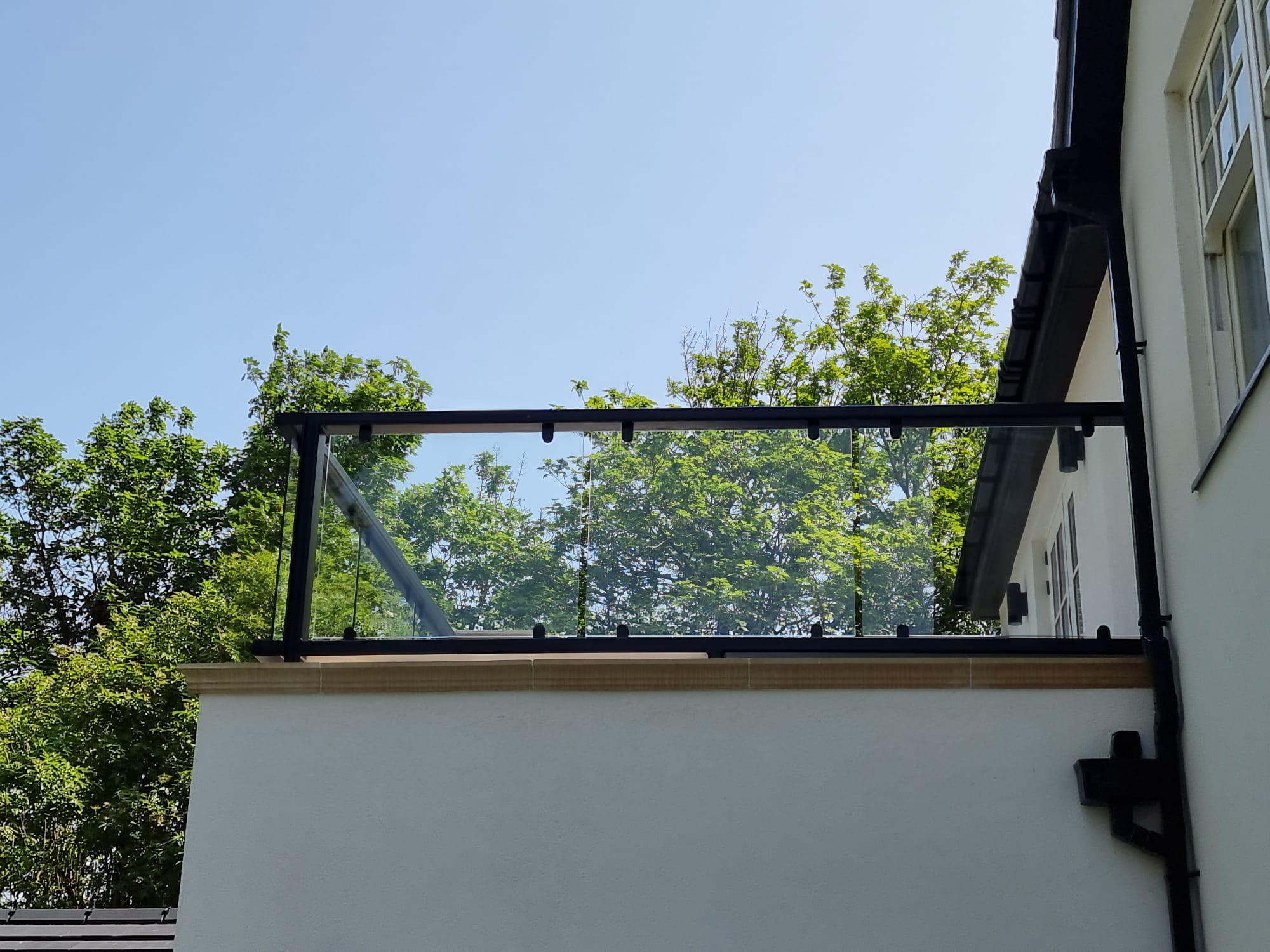

The client specified RAL 7016 Anthracite Grey for the steel framework, matching the window and door profiles on the extension. This is by far the most requested colour on residential projects at the moment and works particularly well against white or light render as seen here.

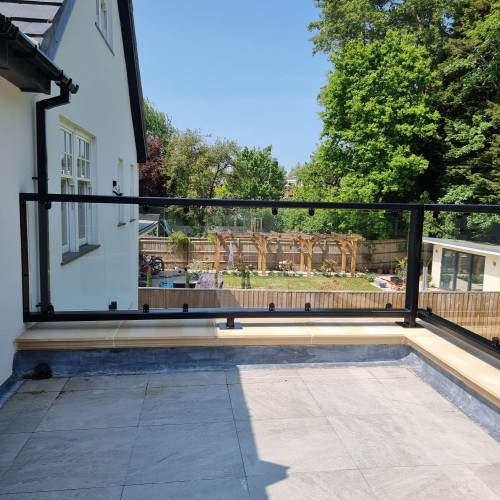

The glass panels are 10mm toughened clear glass, held in the steel frame using 8-10mm stainless steel glass clamps drilled and tapped directly to the steel frame, and retained by a continuous top handrail. The result is a clean, contemporary appearance that maximises the garden view from the terrace without visual obstruction.

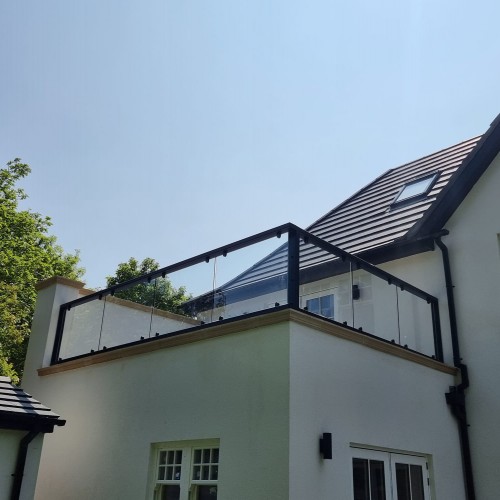

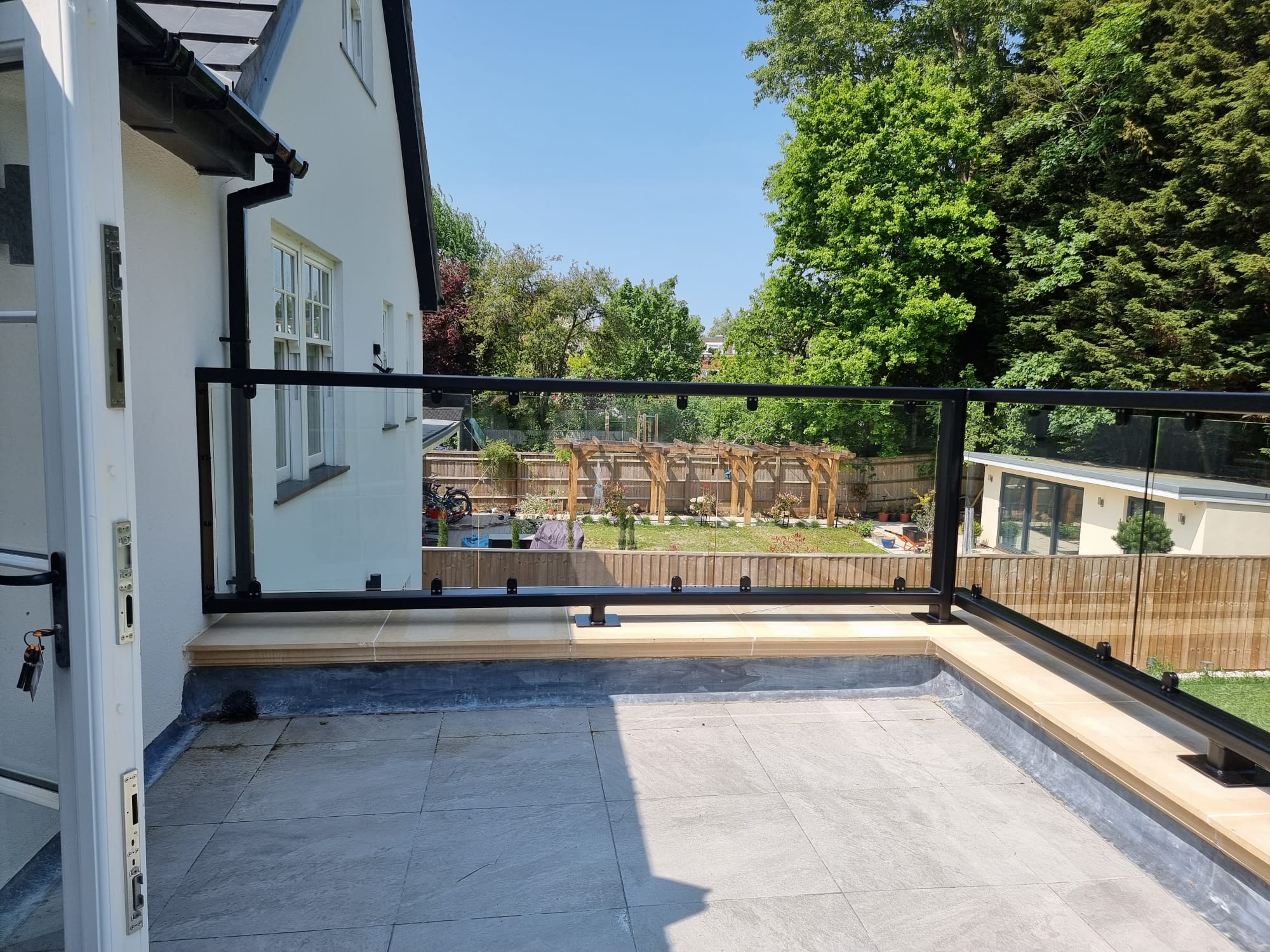

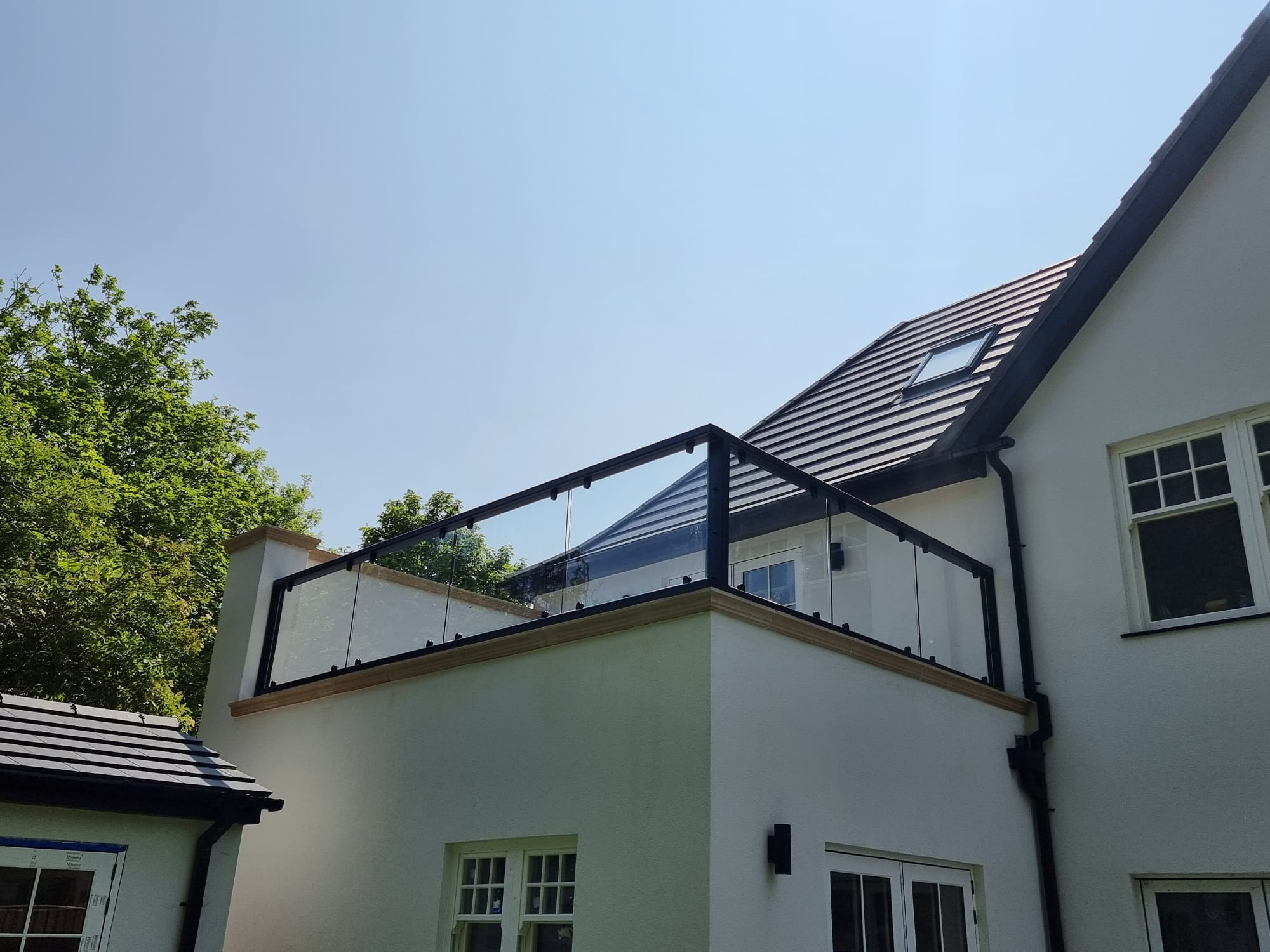

The system wraps the full perimeter of the terrace including the corner return, which required careful detailing at the junction to maintain structural continuity around the corner post.

Technical Insight: Protecting the Flat Roof Membrane

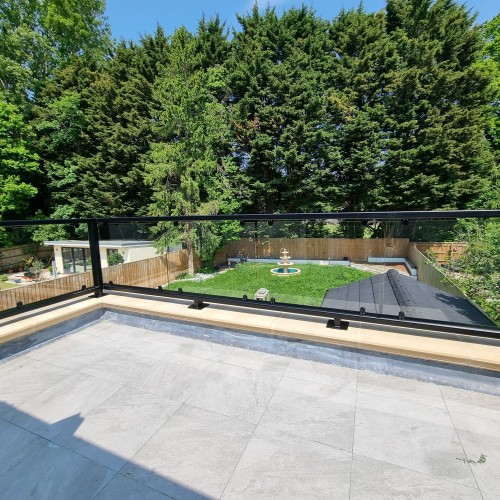

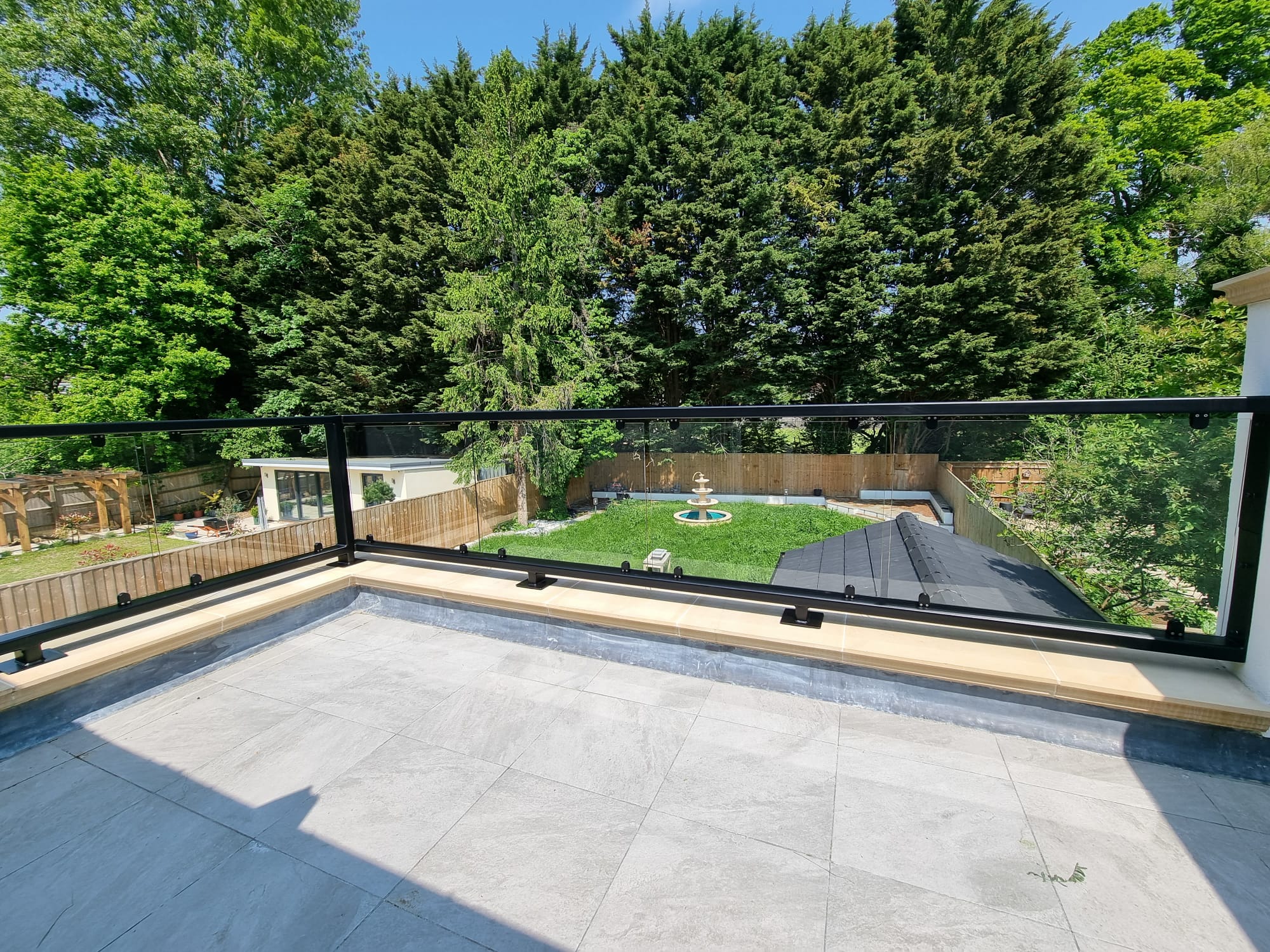

One of the most common mistakes on flat roof terrace balustrade installations is penetrating the waterproofing layer to fix posts. Even small penetrations can lead to water tracking under the membrane over time, causing internal damage that may not become visible until significant harm has been done. The parapet system completely avoids this risk by keeping all structural fixings within the wall rather than through the roof. The finished installation sits above the coping stone level, allowing water to drain freely across the roof surface and into the outlets without any obstruction or risk of ponding against a post base.

Frequently Asked Questions

Can a glass balustrade be fitted to a flat roof terrace without drilling through the roof? Yes. Our parapet cavity wall system is specifically designed for this situation. All structural fixings pass through the parapet wall coping into the inner structural leaf, keeping the waterproof membrane completely intact.

Does a flat roof balustrade need to comply with building regulations? Yes. Any balustrade on a roof terrace accessible from a habitable space must comply with Part K of the Building Regulations and meet the loading requirements of BS6180. For external domestic applications the minimum height is 1100mm and the system must resist a lateral load of 0.74kN per metre.

What glass thickness is used on the parapet balustrade system? We typically use 10mm toughened clear glass on the standard parapet system. For wider panel spans or specific load requirements, 12mm glass can be specified. All glass is manufactured to BS EN 12150.

Can the balustrade be powder coated to match my windows and doors? Yes. We can powder coat to any RAL colour. RAL 7016 Anthracite Grey is our most popular choice for modern residential projects, though we regularly supply in black, white, grey and bespoke colours.

Do you install nationally or only in South Yorkshire? Dio-Met installs balustrades nationwide. We also offer supply-only options for customers with their own installation teams. Contact us to discuss your project and we can advise on the best approach.

Explore More From Dio-Met

If you are planning a flat roof terrace, balcony or balustrade project, you may also find these useful:

• Parapet Cavity Wall Glass Balustrade - the system used on this project
• Frameless Glass Balustrade System 4 - base channel frameless option for solid substrates
• Glass Balustrade Systems - full range of framed and frameless options
• 10mm Toughened Glass Panels - glass used in this installation
• Walkout Balconies - combined balcony and balustrade systems
• Bespoke Balustrade Systems - for non-standard requirements
• Installing Glass Balustrade on Flat Roof Extension, Milton Keynes - similar project case study
