• Electric Motorised Hinged Glass Floor

This product is still in the prototype stage and will be available later in 2022….

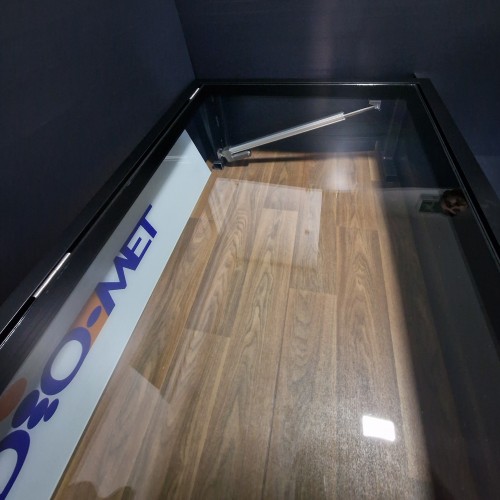

Dio Met’s electric / automated wine cellar door / hinged glass floor system is available in a range of sizes to suit your floor opening size and made bespoke. All our hinged walk-on glass floor systems come with a structural walk-on toughened and laminated glass panel which is fully sealed within a steel framework. The framework is operated with an electric / motorised gas strut mechanism.

Each of our electric motorised hinged glass floor units are made to order and the size you should enter should the tight opening size of your floor recess. The frame is then designed to lip over this by 50mm on all sides and be self supporting with installation tolerance built into the design. The frame has fixing points around the perimeter to secure into sides of your opening.

This motorised unit is fully electically powered and therefore has a much cleaner finish without the requirement for any lifting handles or locks. As a cheaper alternative, see our manually operated hinged glass floor systems.

As all of our hinged glass floor systems are made to order the current manufacture time is estimated to be 6-8 weeks from order.

Width = Hinged Side

Height = Non Hinged Side

Once ordered a drawing will be provided based on your sizes to fully check and approve prior to manufacture.

The product comprises :

  • 25.5mm toughened and laminated structural floor glass panel with painted borders
  • Steel support framework with hinged internal panel comprising fully sealed glass panel
  • Main framework is powdercoated black as standard- other colours available on request
  • Flush fitting stainless steel hinges

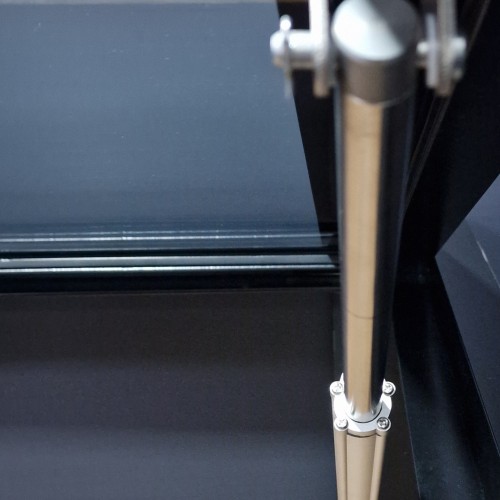

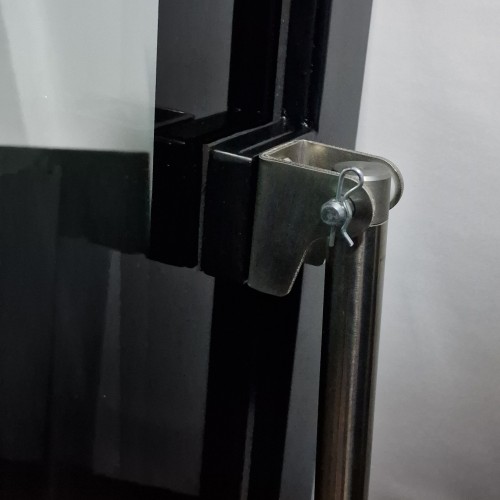

  • Electric gas strut actuators with associated wiring loops and control panels

Non slip treatment – invisible to the naked eye, this will make the glass anti-slip and last approximately 5 years.

Our hinged walk on glass trap door systems are commonly used as basement doors, wine cellars and storage display units.

The frames are not designed to be watertight and should only be used internally, in dry areas.

Each unit is supplied fully assembled and installation should be simple for any competant builder or tradesperson. For the electrical element of installation, only use qualified electicians.

Please contact us for any bespoke variations required.

Our steel frameworks are fully certified to BS 1090-2 and the glass is designed to a concentrated load of 2.0kN and in accordance with BS EN 1991-1-1 2002.

These hinged floors are rated and structurally approved for domestic use – The thickness of glass required will occasionally vary depending on size, location, building use and structural support so if in doubt, please contact a structural glass engineer for confirmation. It is the customer’s responsibilty to ensure all goods purchased are suitable to satisfy their own building control requirements.





Electric Motorised Hinged Glass Floor

  • £2,700.00

  • Inc VAT £2,250.00
