Project Portfolio: Integrated Glass Safety Gate & Balustrade (Wortley)

Project Overview

Client: Gary

Location: Wortley, South Yorkshire

System: System 2 Stainless Steel & Glass

Primary Feature: Custom-Engineered Framed Glass Access Gate

The Challenge: Secure Access without Visual Obstruction

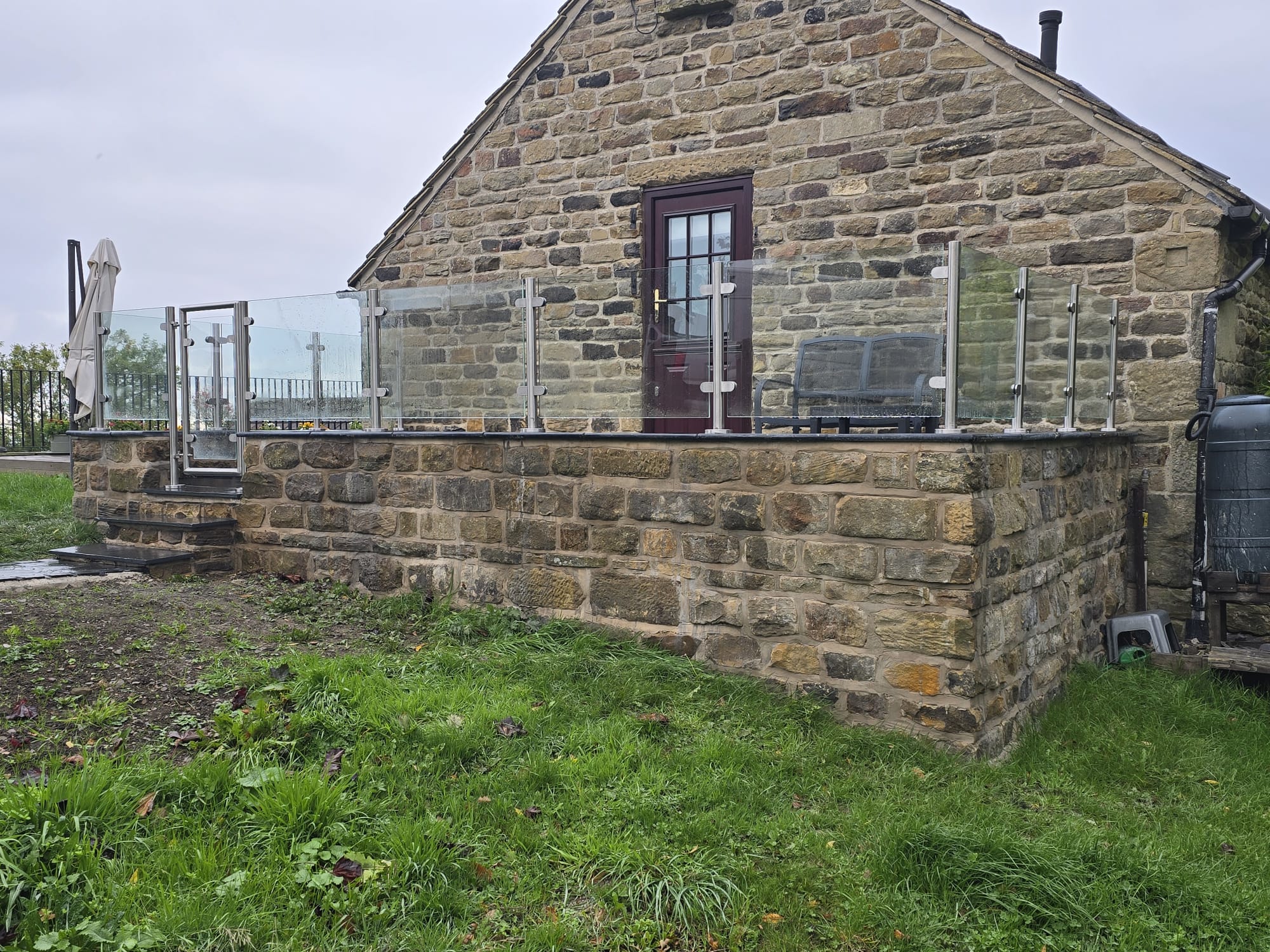

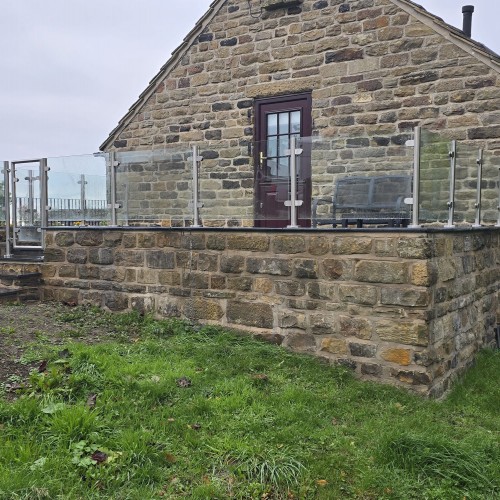

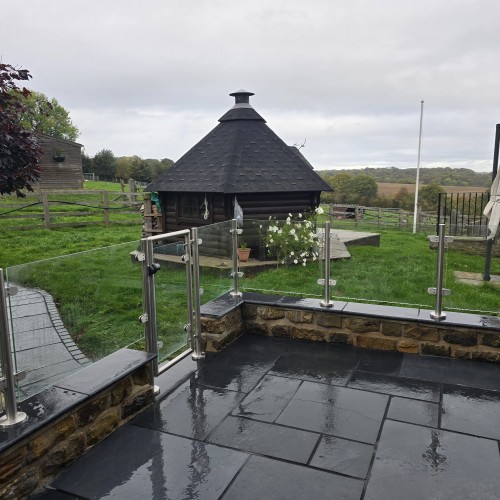

For this residential project in Wortley, the client required a comprehensive perimeter for a stone patio that was safe for both children and dogs. The critical requirement was a matching glass gate that felt as substantial and secure as the main balustrade run, avoiding the "wobble" common in standard domestic gate kits.

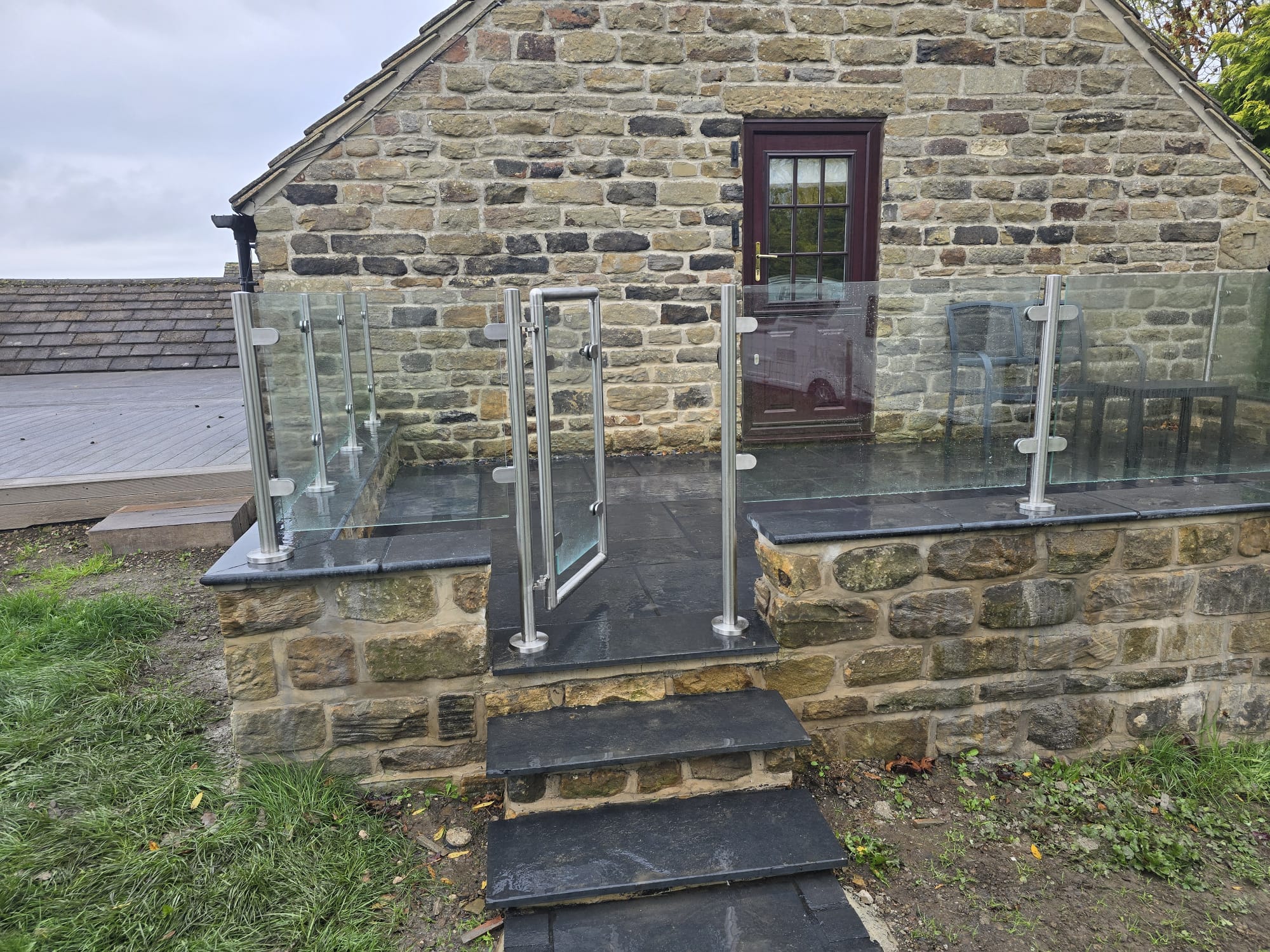

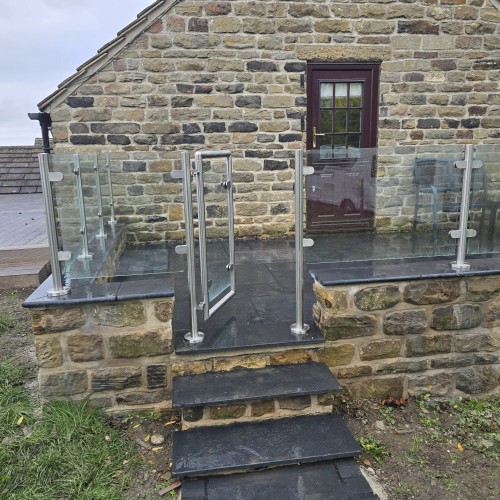

• Framed Gate Design: Unlike frameless glass gates which can be prone to misalignment, we manufactured a full-framed stainless steel gate. This ensures the 10mm toughened glass is protected on all edges and provides a clear visual and physical boundary.

• Seamless Aesthetics: The gate hardware—including hinges and latching mechanisms—was designed to match to the brushed stainless steel System 2 uprights for a cohesive architectural finish.

• Child & Pet Safety: The gate was designed with specific height requirements to prevent climbing, while the clear glass allows for full supervision of the patio area from the house.

Technical Expert Insight: Engineering Gate Hinge Posts for Zero-Sag

Most installers treat a gate post like any other balustrade post, which is a mistake. A gate post is subject to constant torsional stress every time the gate is opened or closed. For Gary's project in Wortley, we utilized a heavy-wall 48.3mm stainless steel post specifically for the hinge side. By employing our core-drill fixing method, we anchored this post 300mm deep into the structural masonry beneath the paving. This ensures the gate never "sags" or drags on the floor, maintaining a perfect 5mm latch tolerance even after years of high-frequency use.

Get a Quote: Custom Gates & Balustrades

Whether you need a standalone glass gate or a full perimeter system, we provide a complete design, manufacture, and delivery service. Our in-house installation team (never subcontractors) handles projects across Wortley, Sheffield, and across the whole UK, with DIY kits shipped nationwide for DIY installation too.

Check out a similar project using handrails and raised frosted sections- suitable for guarding falls from height and privacy screens as seen in our Oughtibridge project
